Audere at Wildhorse Village

With construction already underway on a four-story, sixteen-unit wood-framed condominium over a below-grade parking garage, getting the building enclosure right meant catching problems in the field before they became water intrusion problems later. Audere at Wildhorse Village in Chesterfield brought G&W in for enclosure consulting alongside an active construction schedule.

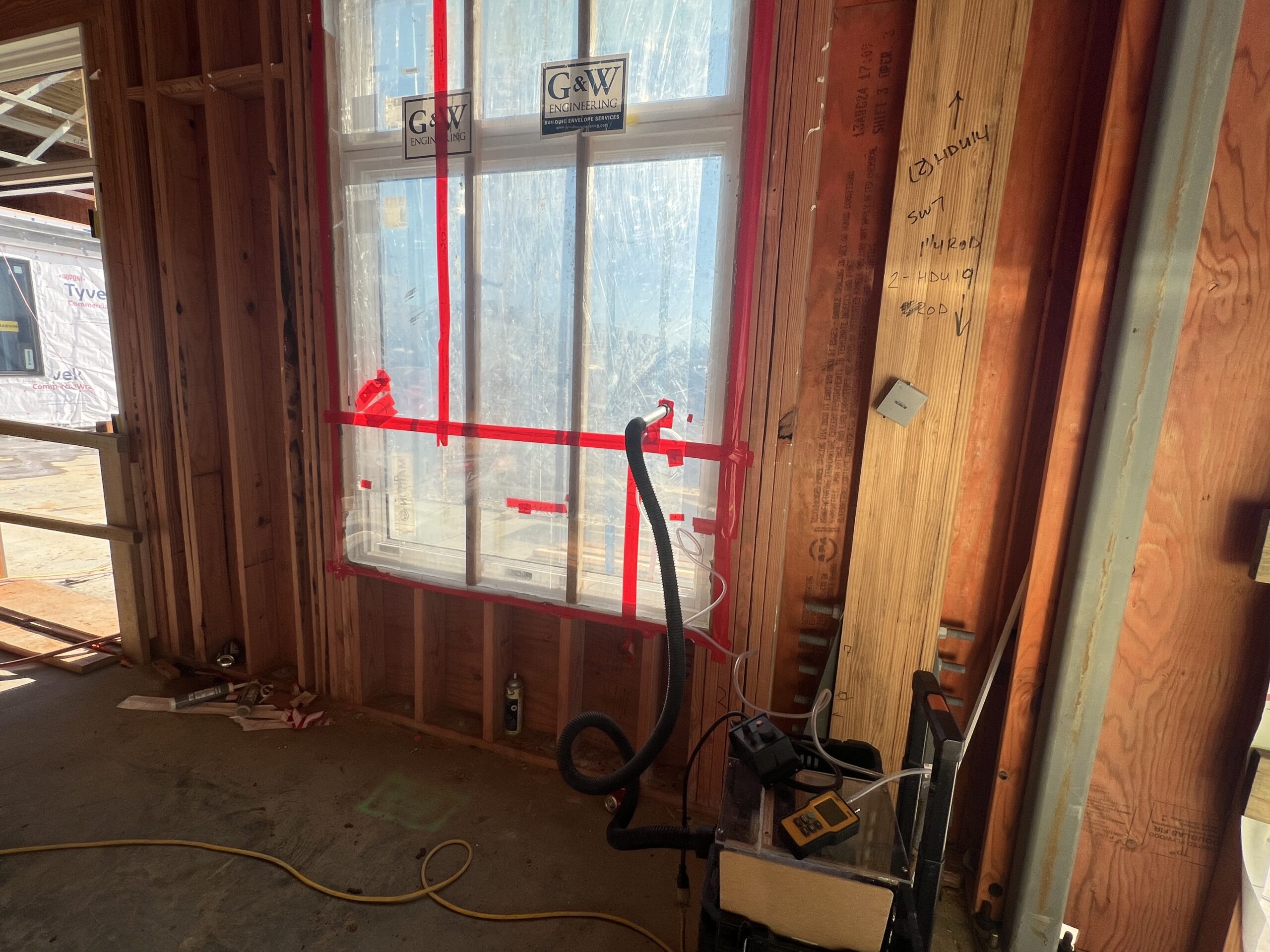

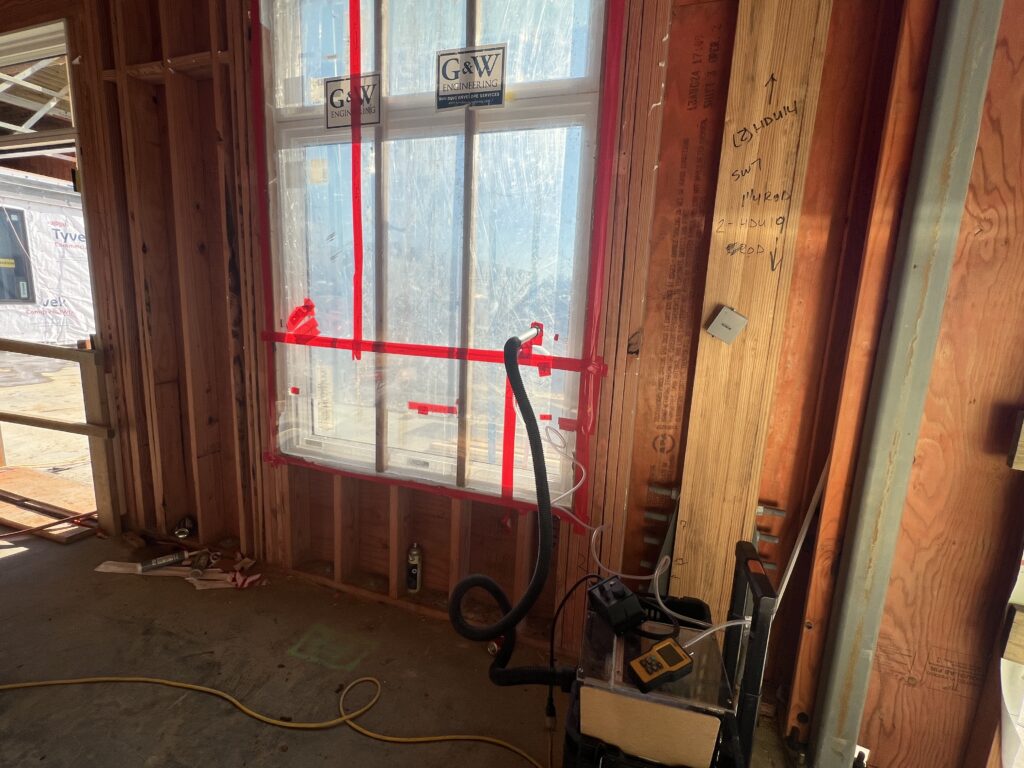

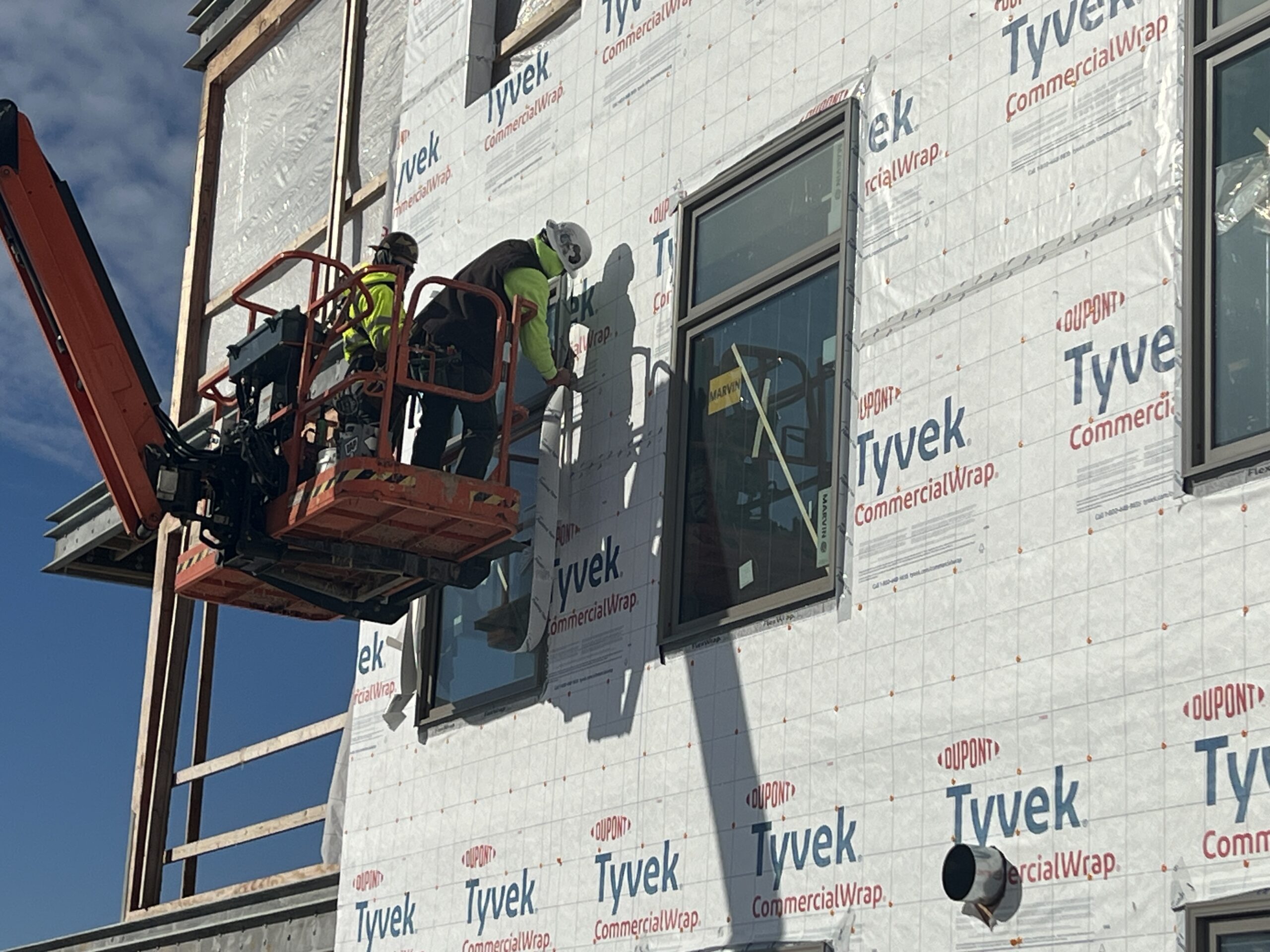

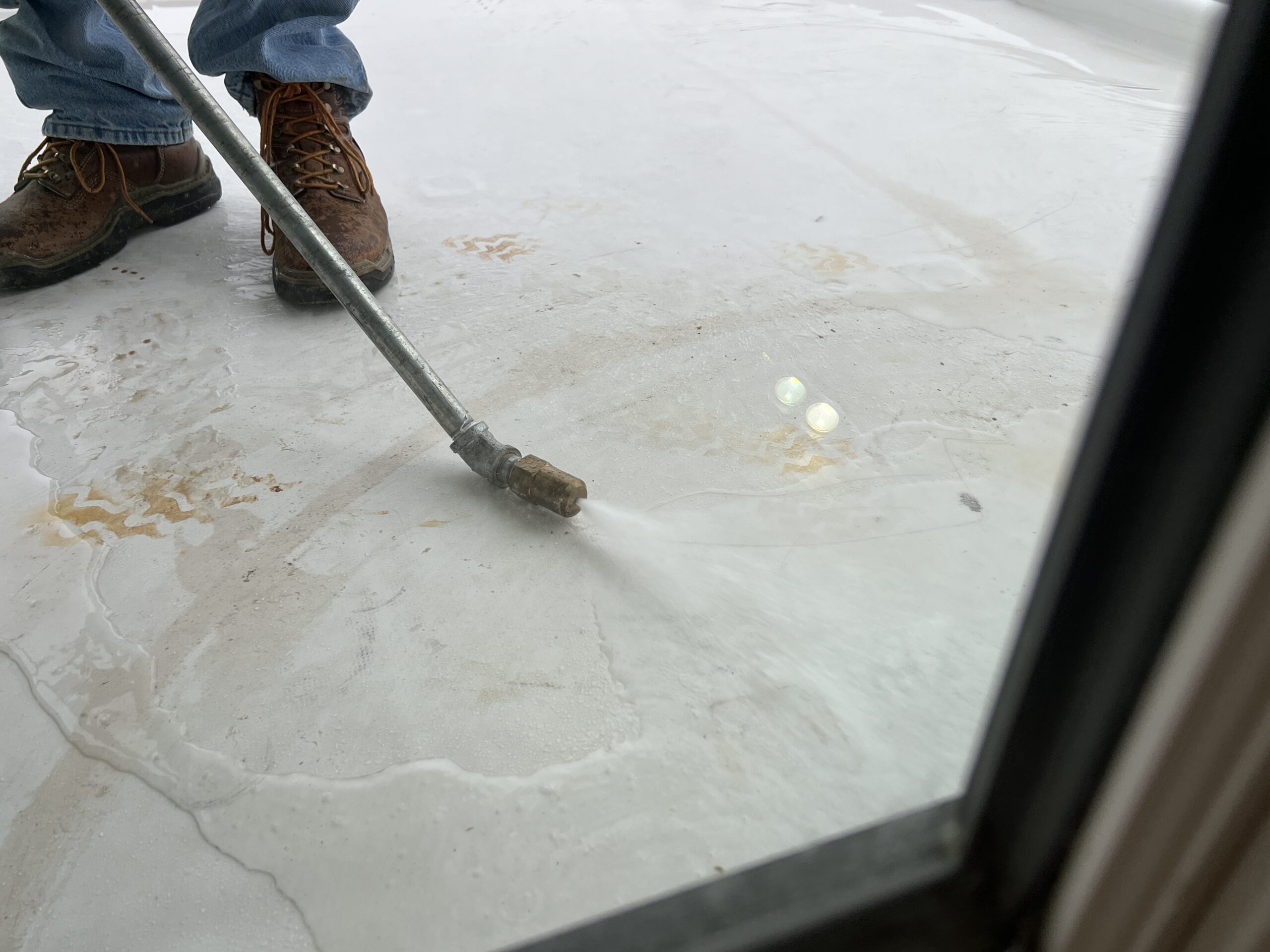

The scope started with a detailed review of the construction documents and a markup of details needing clarification, then carried through pre-construction coordination and six quality-control site visits tracking the critical assemblies: waterproofing, exterior sheathing, weather-resistant barriers, roofing, cladding, and glazing. Two additional mobilizations covered fenestration testing, with operable window units checked to ASTM E1105 and storefront framing subjected to AAMA 501.2 spray testing. A progress issues and resolution log kept findings and fixes documented across the enclosure process.

Location:
Chesterfield, MO

Client Type:
Owner

Size:
4-Story

Market:
Housing

METHODS & STANDARDS

AAMA 501.2

Field spray check for glazing leaks

ASTM E1105

Installed fenestration water penetration verified

OUR APPROACH

Document Review

Marked-up drawings, areas of concern

Issues Log

IOpen items tracked to closure

Site Observation

Six visits, waterproofing through cladding

Field Testing

Two mobilizations, windows and storefront

Reporting

Per visit and per test

FIELD WORK
